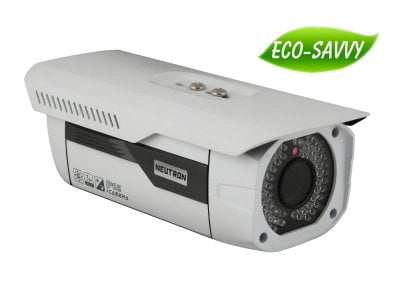

IPC-HFW5200-DP

Açıklama

ModelIPC-HFW5200DP
Camera
Image Sensor1/2.8” 2Megapixel progressive scan Exmor CMOS
Effective Pixels1920(H)x1080(V)
Scanning SystemProgressive
Electronic Shutter SpeedAuto/Manual, 1/3~1/10000s
Min. Illumination

0. 1Lux/F1.2 (Color), 0.01Lux/F1.2(B/W);0Lux/F1.2(IR on)

S/N Ratio

More than 50dB

Video Output

1 channel BNC(1.0Vp-p,75Ω)

Camera Features
Max. IR LEDs Length50m
Day/NightAuto(ICR)/Color/B/W
Backlight CompensationBLC / HLC / DWDR
White BalanceAuto/Manual
Gain ControlAuto/Manual
Noise Reduction3D
Privacy MaskingUp to 4 areas
Lens
Focal Length3.6mm (6mm,8mm optional)
Max ApertureF1.6
Focus ControlManual
Angle of ViewH:70°(48.8°/37°)
Lens TypeFixed lens
Mount TypeBoard-in Type
Video
CompressionH.264/ MJPEG
Resolution1080P(1920×1080)/720P(1280×720)/D1(704×576)/CIF(352×
288)
Frame RateMain Stream1080P/720P(1 ~ 25/30fps)
Sub StreamD1/CIF(1 ~ 25/30fps)
Bit RateH.264: 32K ~ 8192Kbps
Audio
CompressionG.711a/ G.711u/ PCM
Interface1/1 channel In/Out
Network
EthernetRJ-45 (10/100Base-T)
Wi-FiN/A
ProtocolIPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
ONVIFONVIF Profile S
Max. User Access20 users

Smart Phone

iPhone, iPad, Android, Windows Phone

Auxiliary Interface
Memory SlotMicro SD, Max 64GB
RS485N/A
Alarm2/1 channel In/Out
PIR Sensor RangeN/A
General
Power SupplyDC12V, PoE (802.3af)
Power Consumption<7.6W
Working Environment-20°C~+60°C, Less than 90% RH
Ingress ProtectionIP66
Vandal ResistanceN/A
Dimensions88mm×76mm×200.2mm
Weight0.92kg
